Column Boom Welding Systems
Column Boom Welding Systems Description

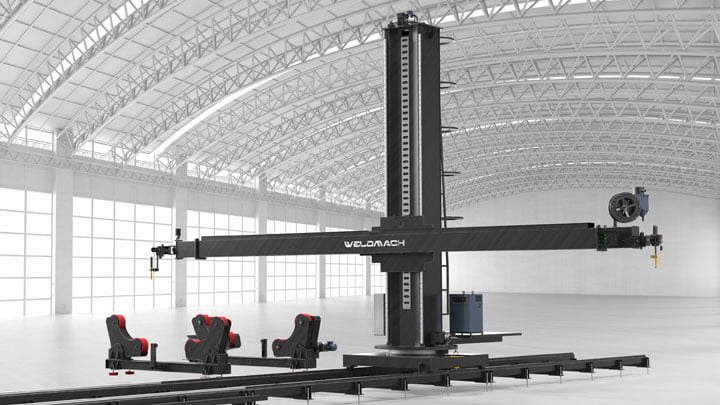

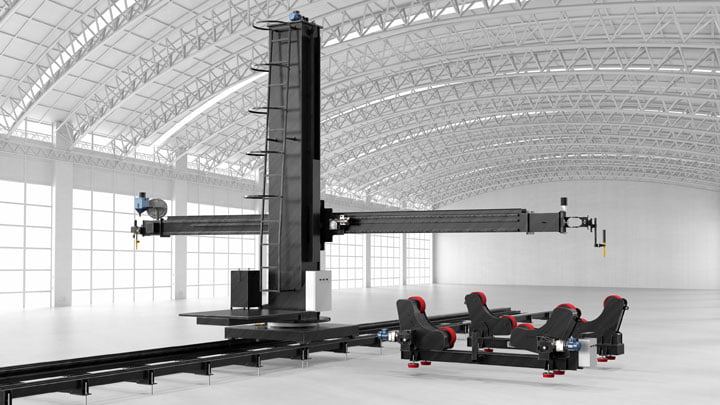

The Column and Booms welding systems (Welding manipulators) are designed to improve productivity and reach high-quality standards. The Column & Boom (Welding manipulator) systems are optimal solutions for mass production, especially for big workpieces, when it is used in combination with a rotator set or positioner.
Passive safety systems are available in all our Column and Booms are such as an automatic lock, brake on a gear motor and safety chains in case of power failure.

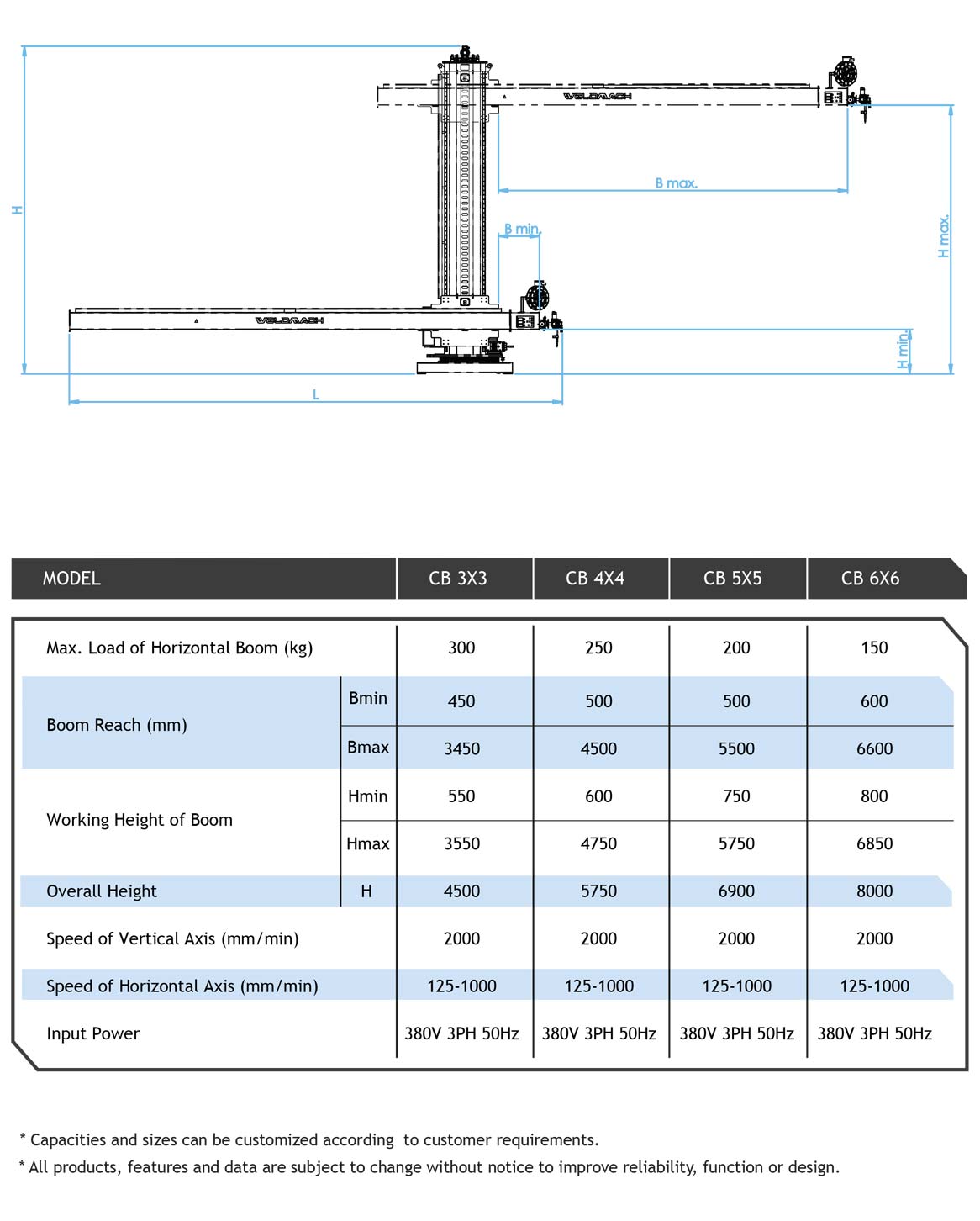

Weldmach company can produce Column and Boom systems (Welding manipulators) with 10 meters of horizontal and 10 meters of vertical travel stroke as standard. These dimensions can be customized according to the customer’s specific requirements.

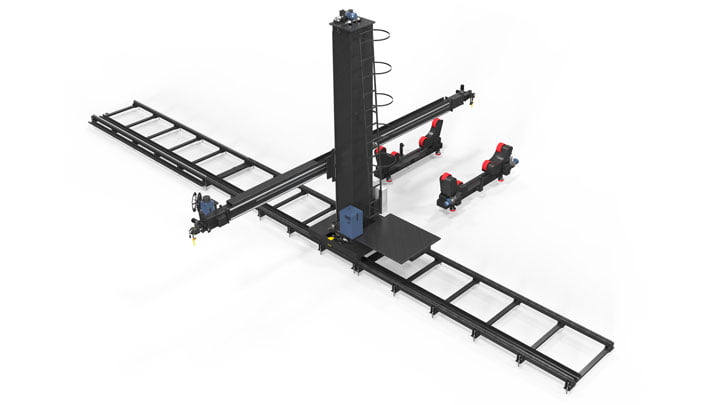

The Column and Booms (Welding manipulators) can be combined with motorized undercarriage, column rotation for 270°, a cross slide, flux recovery, seam tracking systems, etc.
Applications of Column & Boom: pipe, steel structures, beams, crane beams, pressure vessels, shells, water tanker, milk tank, LPG tank, automotive industry, pipeline construction, robust steel construction, tank and barrel burnishing and welding.
Welding Types:
– Submerged arc welding (SAW)
– Tungsten inert gas (TIG) welding
– Metal inert gas (MIG) welding
– Arc welding
– Single or Tandem
and more…
Standard Features
- 7" touch screen.
- Advanced PLC program.
- High-precision linear guides ensure smooth motion of all axes.
- All programs can be saved to memory for immediate recall as required.
- Standard cable carrier to support hoses and cables.
- Ladder at column side.
- Mechanical lock system at boom fall.
- Chain-counterweight balance system.
Optional Features
- Laser seam tracking system.
- Flux recirculation system.
- Monitoring system with camera and 15’’ screen.
- Visual seam tracking system with rollers.
- Undercarriage with rails.
- Column rotation for 270°
- Operator seat.
- Lighting lamp at the end of the boom.
